John Deere Planter Wing End Rebuilt from Scratch in Durbin ND

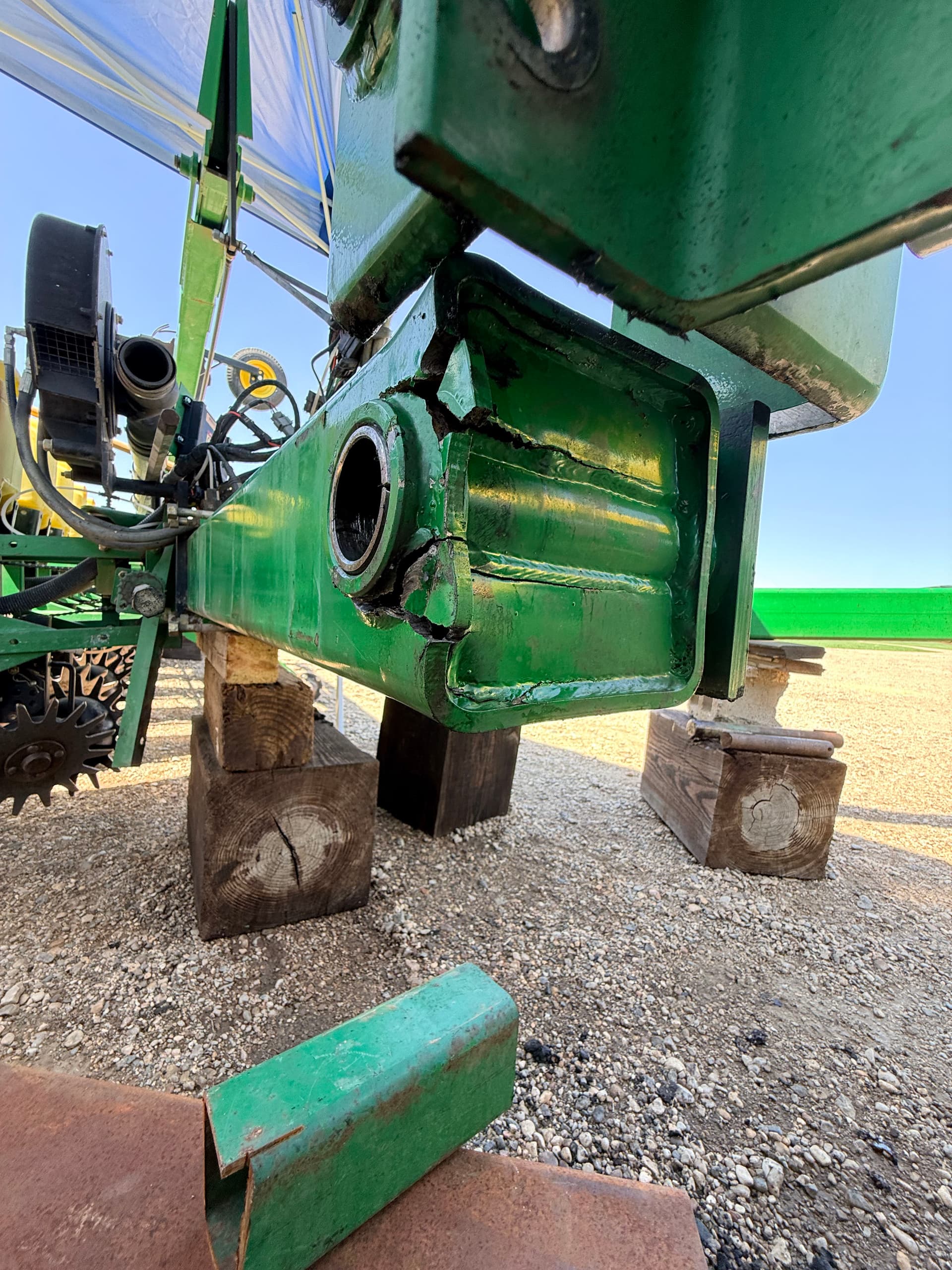

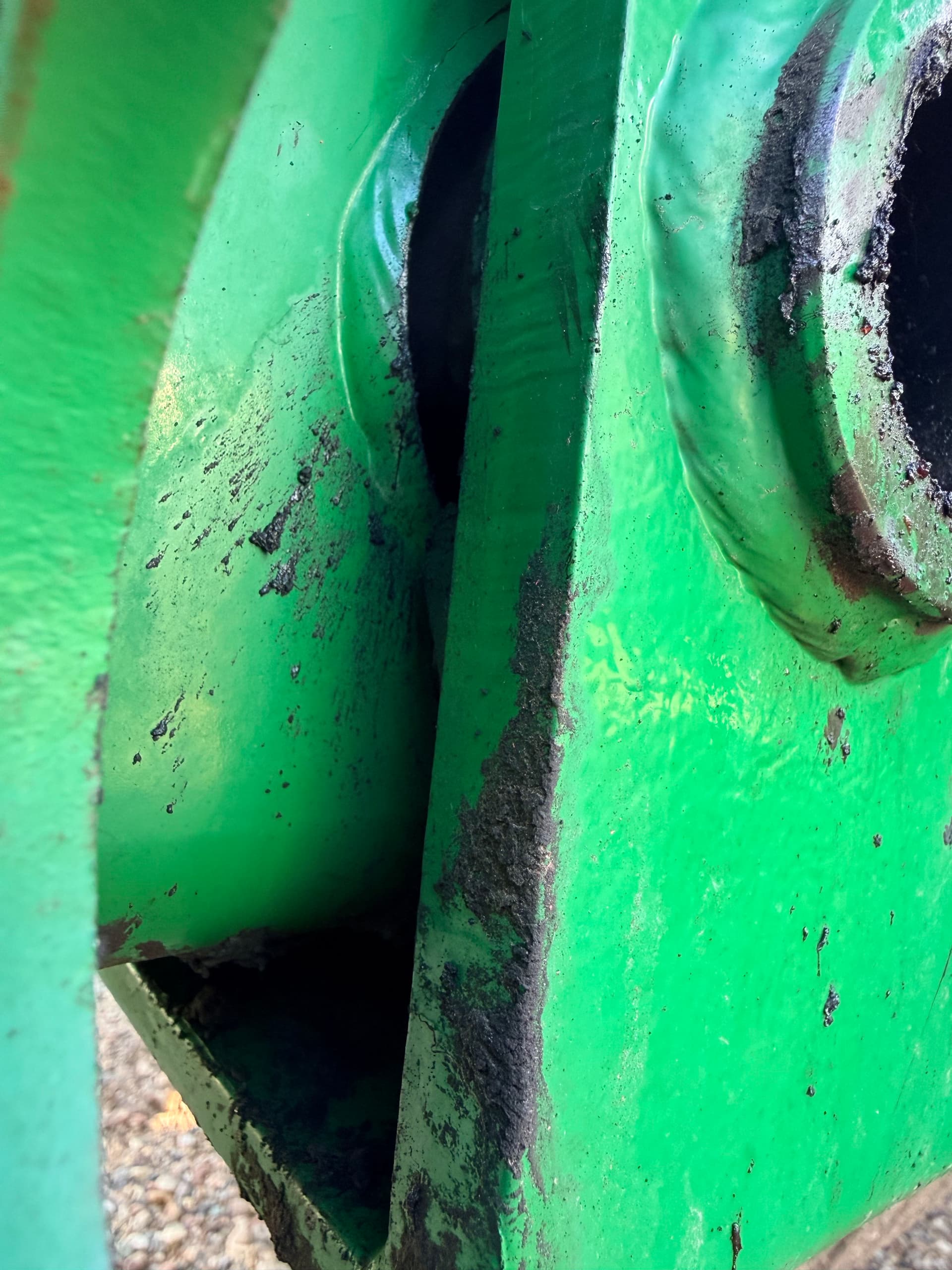

What started as a crack inspection on a John Deere planter turned into something much bigger. Once we got in close and really assessed the damage on the planter wing end, it was clear a simple weld-over wasn't going to cut it. The structural damage around the pivot area was too far gone. The only honest fix was to cut it out and rebuild it right.

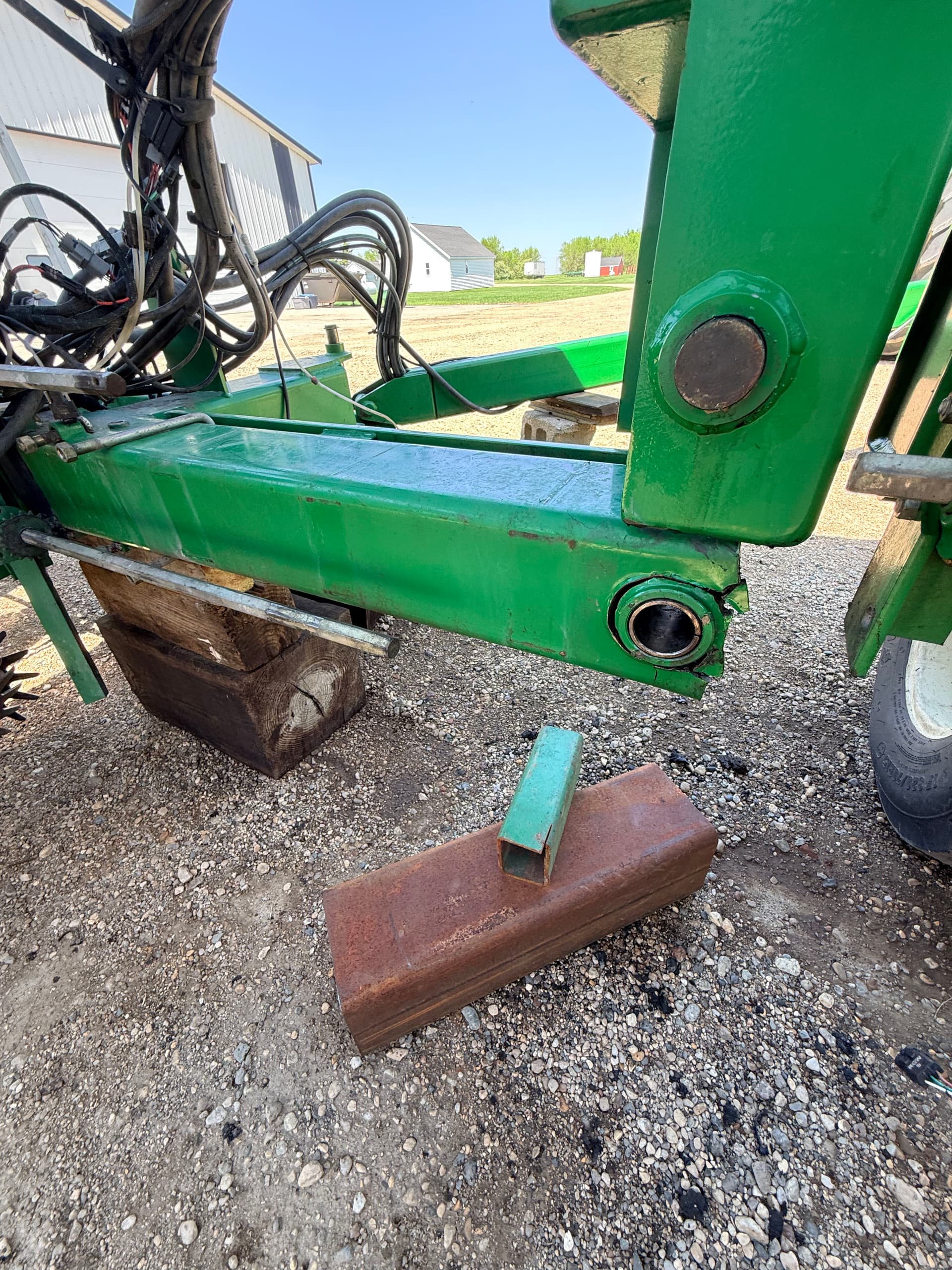

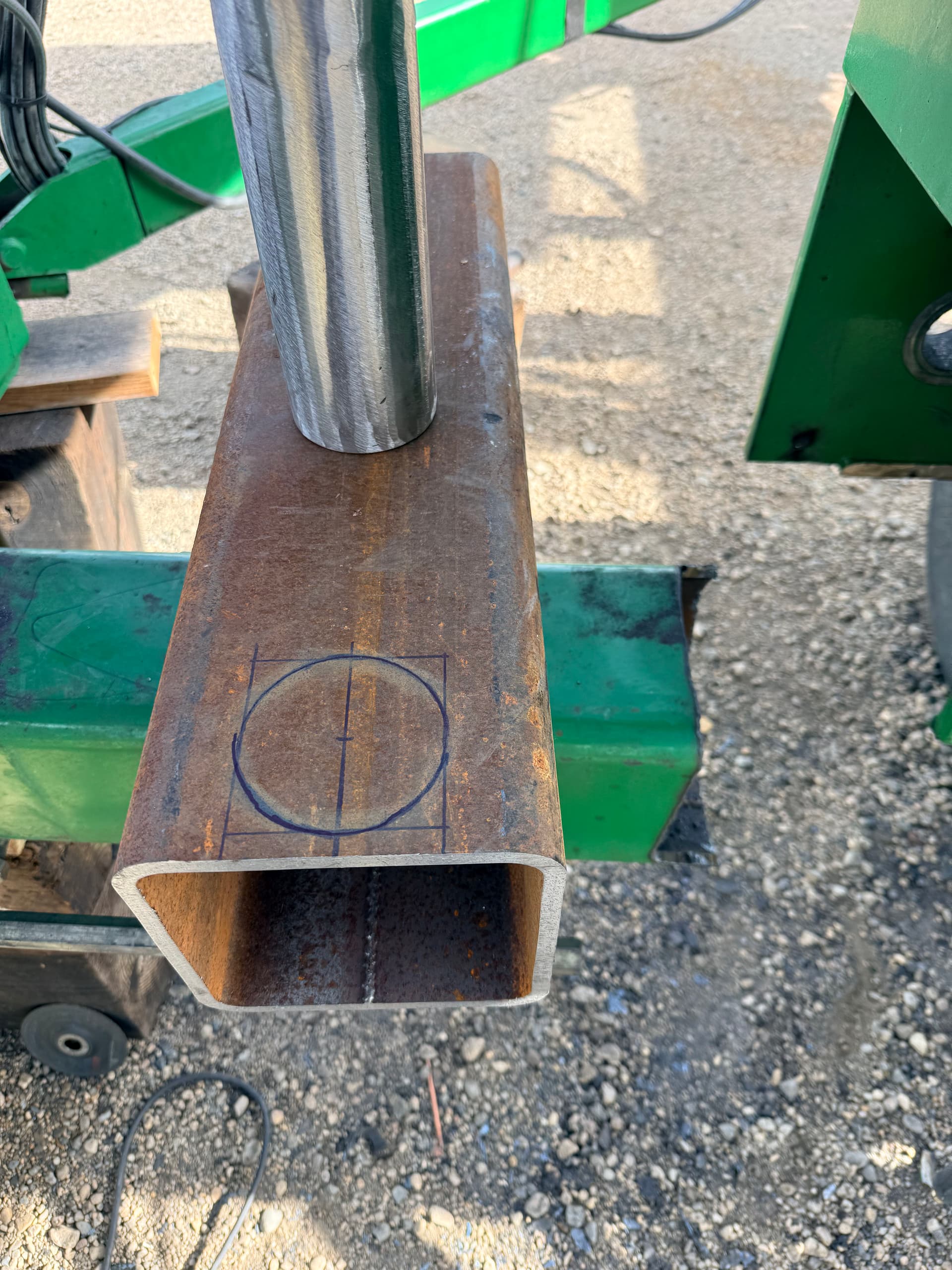

So that's exactly what we did. We cut out the damaged section, rebuilt the pivot area from new material, and fitted everything back together. The pivot bore had to be laid out and cut precisely into the new steel - you can see the layout work done directly on the fresh tube stock before cutting. Getting that bore location right is critical. If it's off even a little, the wing won't track correctly in the field.

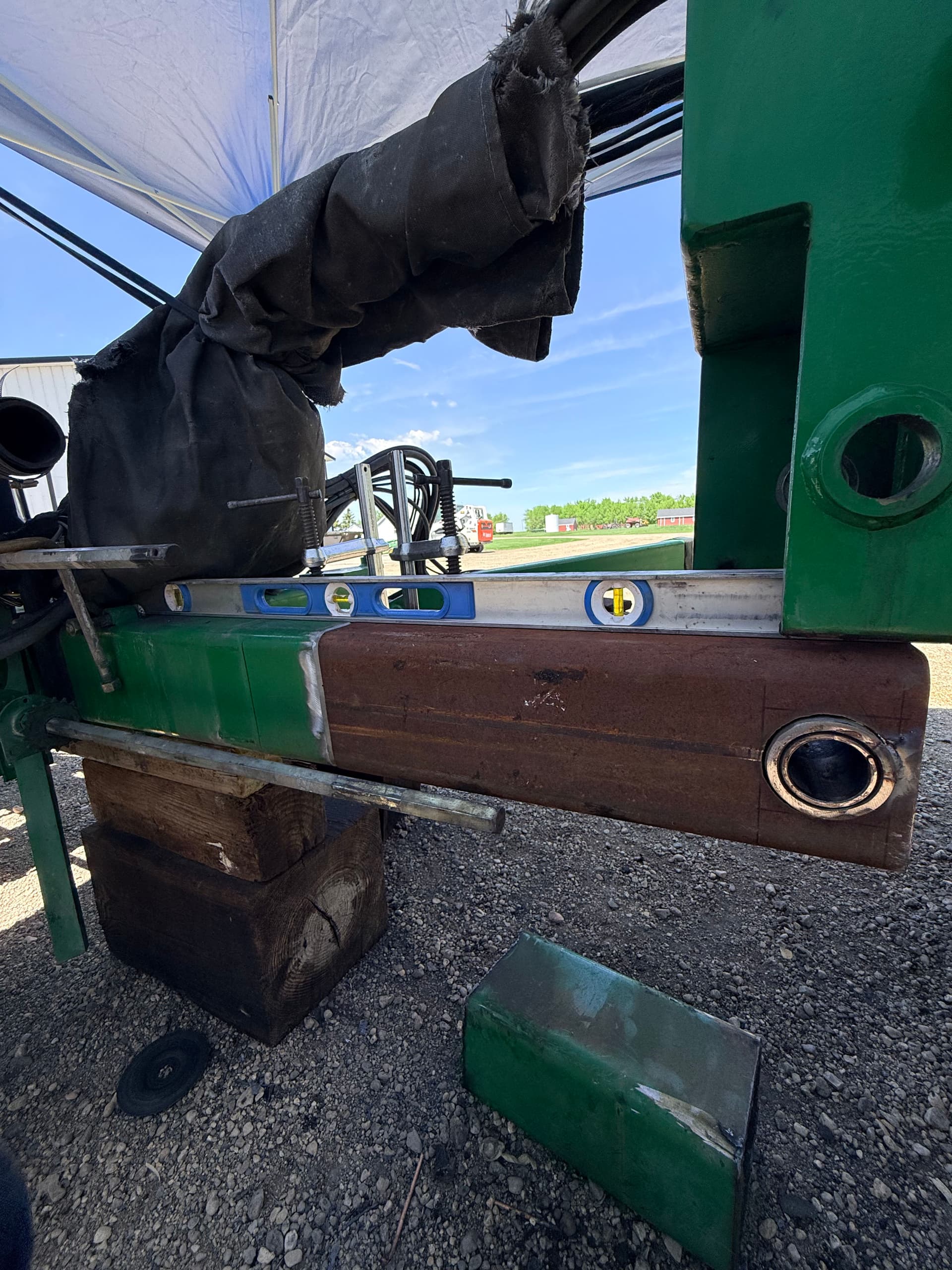

Alignment was a big part of this job. We used a level across the new section during fit-up to make sure everything was sitting true before a single weld bead went down. That kind of attention during the fit-up stage is what separates a repair that holds from one that fails again two seasons later. Once everything checked out, we welded it back together and got it painted up.

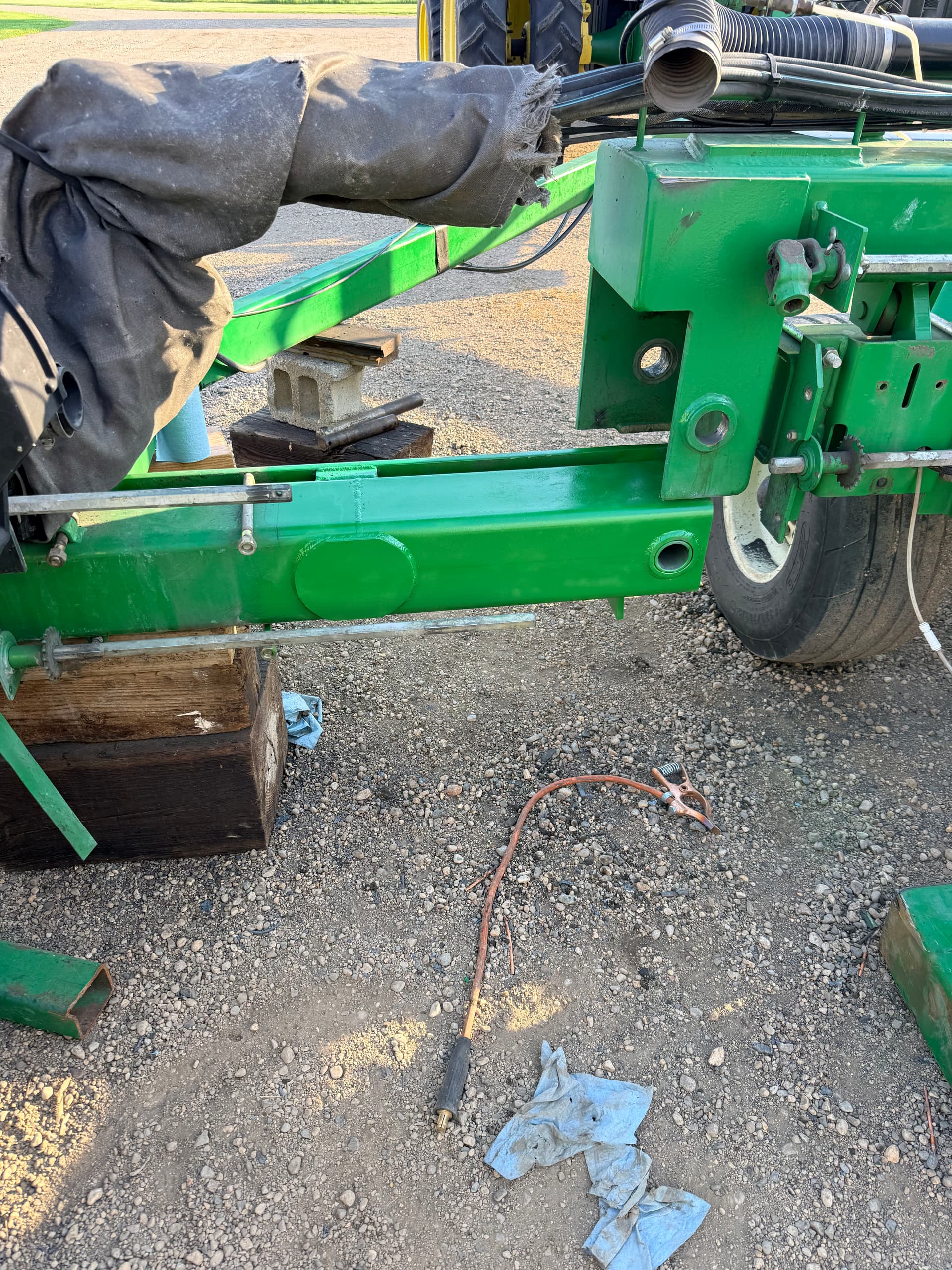

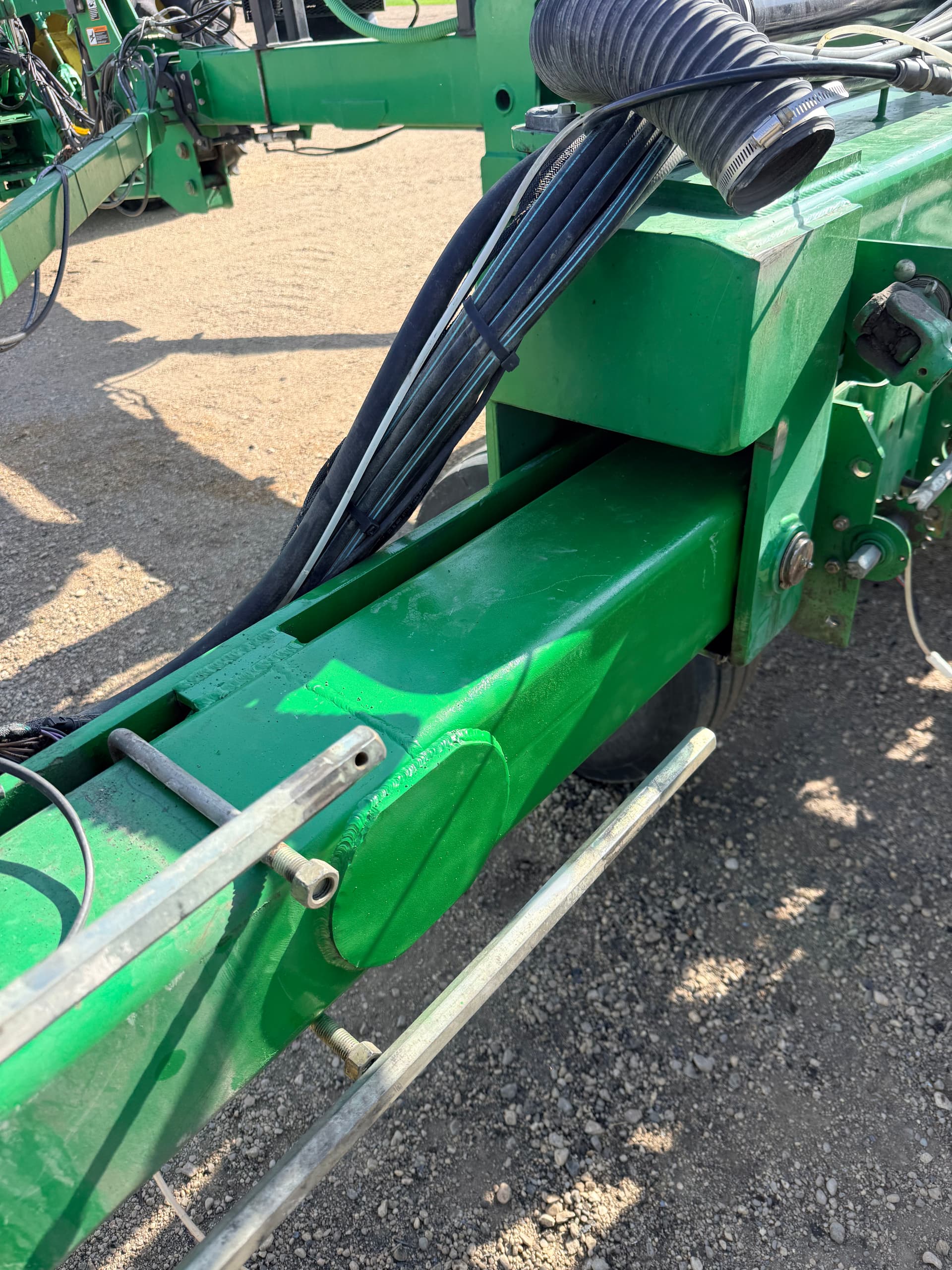

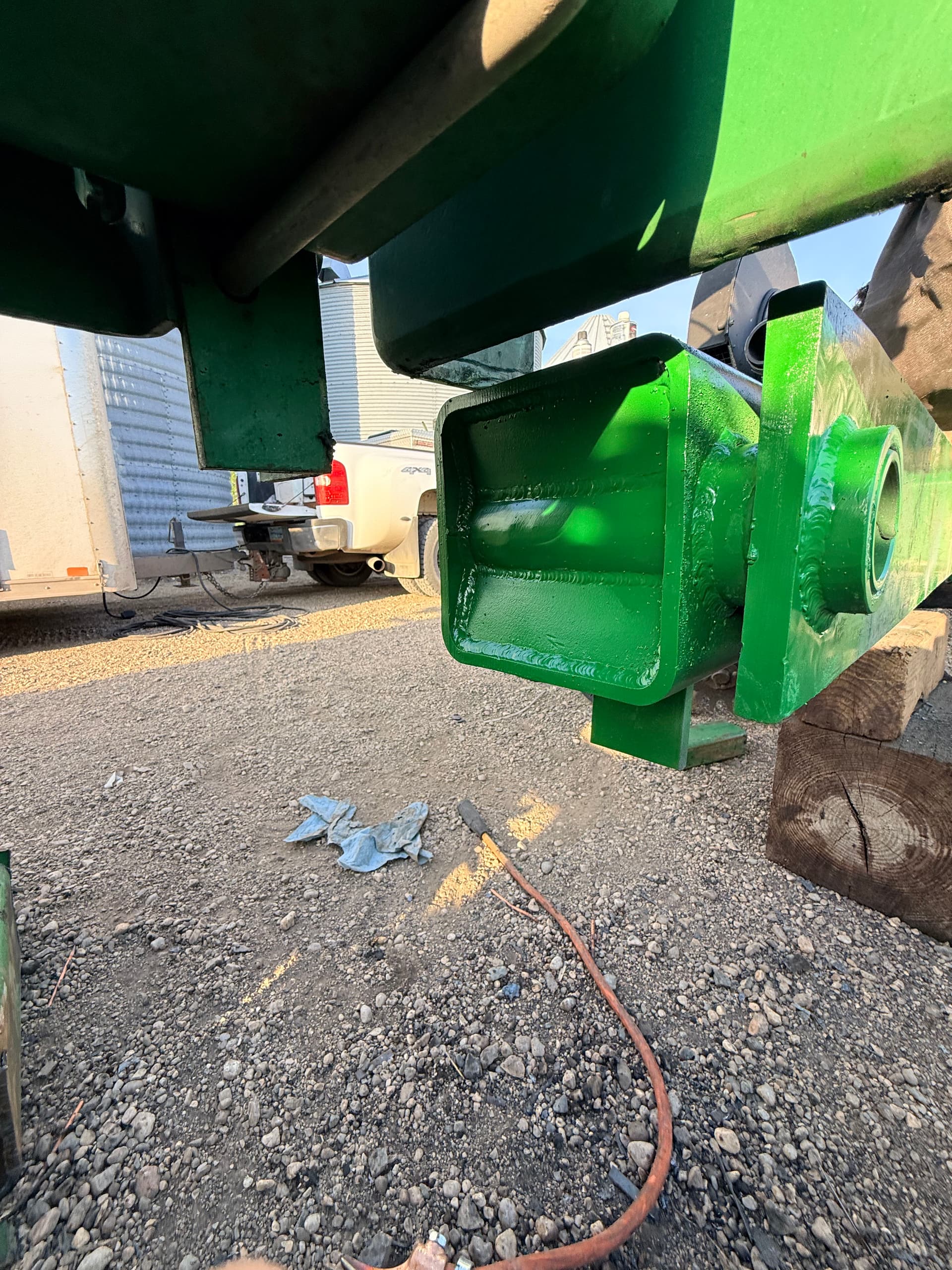

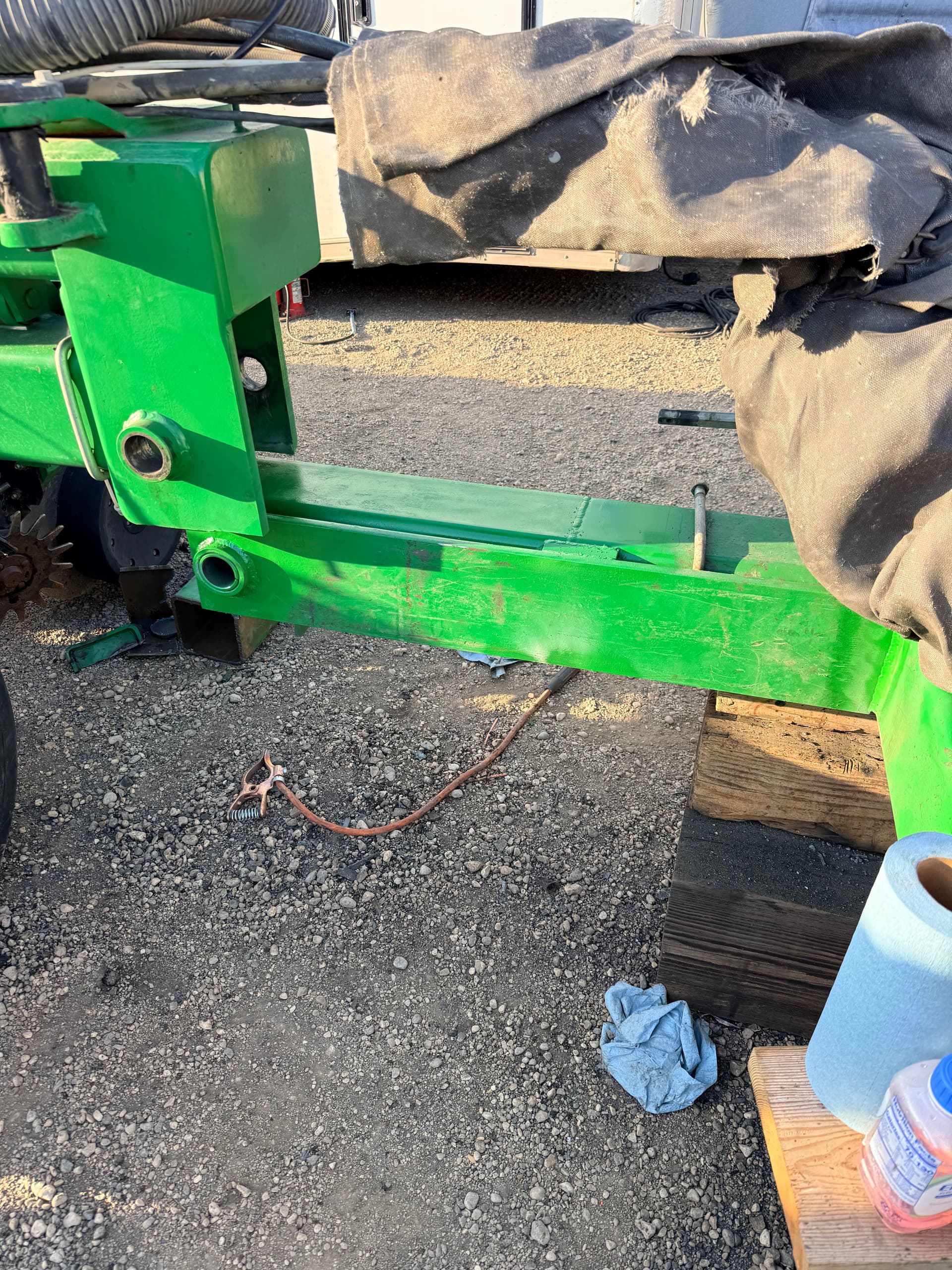

The finished end came out solid - clean welds, proper alignment, and a pivot area that's actually stronger than what was there before. This planter was ready to go back to work. That matters a lot when the window for getting into the field is tight and every day of downtime costs you.

Not every equipment crack repair stays a crack repair. Sometimes the inspection reveals something worse underneath. When that happens, we don't patch over it and hope for the best. We fix it correctly the first time - whether that means a targeted weld repair or a full section rebuild like this one. That's the standard we hold ourselves to on every job we roll out to.
